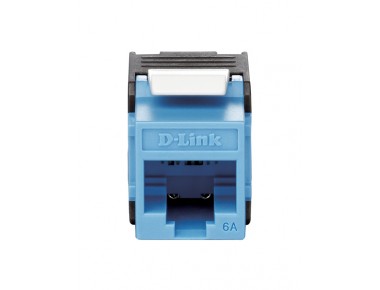

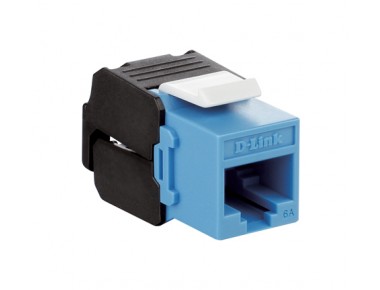

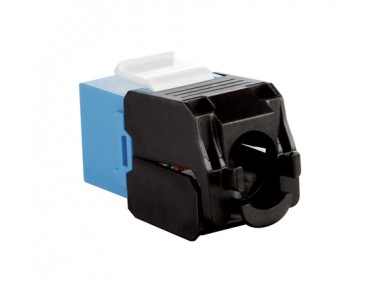

D-LINK Cat6A-10G Keystone Jack

D-LINK NKJ-6ABLU1B21 Cat6A-10G Keystone Jack


FEATURES: "RJ45 8P 8C 50u Jack Terminating 4 pairs, 23-26 AWG Cable Universal labels color coded for T568A and T56 8B wiring schemes Fitting high density keystone panel 3P/ETL/UL/RoHs certified Perform dual function punch down and tool –free".
SPECIFICATIONS: "RJ45 Jack: Housing: ABS+PC, UL 94V-0, Black color. Contact Bracket: PC, UL 94V-2, Transparent color. RJ45 jack Contact: Material: Phosphor Bronze with Nickel Plated Finish: 50 micro-inch Gold Plated on plug contact area. Cap A&B: Nylon Fiber, Black color. IDC: Housing: PC + Glass Fiber, Grey color (RAL7035), UL 94V-2. PCB : FR4, UL 94V-0.
PERFORMANCE: "T568A & T568B wiring sticker Insertion force: 20N max (IEC 60603-7-4) Retention strength : 7.7 kg between jack and plug Life ( Mating Cycles): Jack: 750 cycle min (ISO/IEC 11801, IEC 60603-7-4) IDC: suitable for 23-26 AWG stranded and solid wire, compatible with both 110 & Krone punch down tools. Tool-less: when using the IDC Cap for wire management. The Cat6A transmission performance is in compliance with the ANSI/TIA/EIA 568 C.2 standard."
