FEATURES:

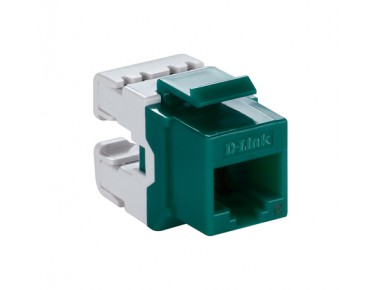

RJ45 8P 8C 180 ̊C 50u Punch Down Jack.
Terminating 4 pairs, 22-26 AWG Cable.
Universal labels color coded for T568A.
and T568B wiring schemes.
Fitting high density keystone panel.
UL, ETL, RoHS certified.
SPECIFICATIONS:
1. RJ45 Jack:
Housing: ABS+PC, UL 94V-0, with optional color
Contact Bracket: PC, UL 94V-2, transparent
2. RJ45 Jack Contact:
Material: Phosphor Bronze with Nickel Plated
Finish: 50 micro-inch Gold Plated on plug contact area
3. IDC:
Housing: PC + Glass Fiber, UL 94V-2
Terminal: Phosphor Bronze, Tin Plated
4. IDC CAP: ABS, UL 94V-0
5. PCB : FR4, UL 94V-0.
PERFORMANCE:
T568A & T568B wiring sticker.
Insertion force: 20N max (IEC 60603-7-4).
Retention strength : 7.7 kg between jack and plug.
Life ( Mating Cycles):
Jack: 750 cycle min (ISO/IEC 11801, IEC 60603-7-4).
IDC: suitable for 22-26 AWG stranded and solid wire,
compatible with both 110 & Krone punch down tool
