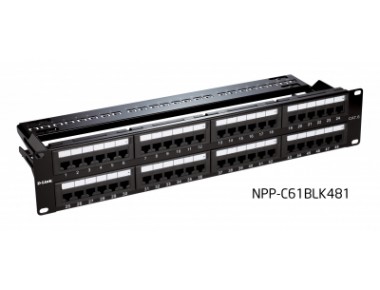

D-LINK Cat6 UTP 48 Port Loaded Patch Panel

D-LINK NPP-C61BLK481 Cat6 UTP 48 Port Loaded Patch Panel


Features: Hand screw, easy to open cover Eight port RJ45 modules applied Jack shutter to keep dust away Friendly installation, right angle between IDCs and RJ45 keystone jacks ID stripes for identifying port allocations IDC compatible with 110&Krone tool Mounts in standard 19” racks RoHS/UL certified.
Specifications: Description: Patch Panel Cat 6 UTP Keystone Type- 48 Port-Fully Loaded. Category: Cat6. Loaded/Unloaded/Fully Loaded: Fully Loaded. Port: 48 port. Unshielded/Shilded: Unshielded.
Performance: T568A & T568B wiring scheme on PCB Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operating temperature: -10C to 60C ( ISO/IEC 11801, ANSI/TIA/EIA 568B.2) Life ( mating cycles): a. Jack: 750 cycle’s min (ISO/IEC 11801, IEC 60603-7-5) b. IDC: suitable for 22-26 AWG stranded and solid wire, compatible with both 110& Krone punch down tools The Cat6 transmission performance is in compliance with the ANSI/TIA/EIA 568B.2 -1 standard.
