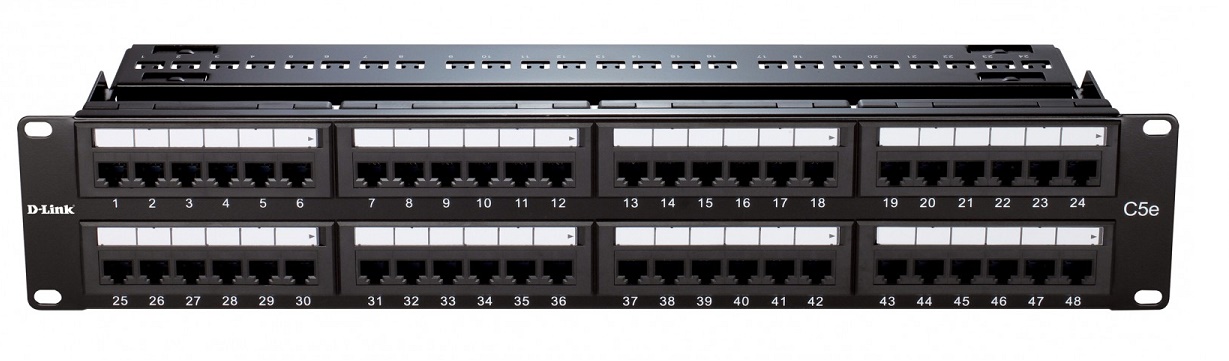

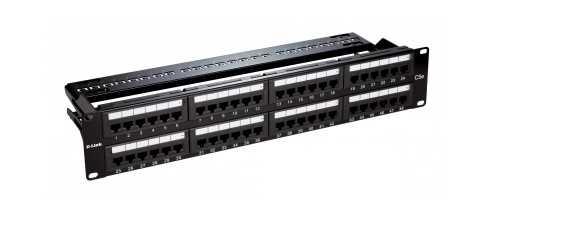

Features Hand screw, easy to open the cover Eight port RJ45 modules applied Jack shutter to keep dust away Friendly installation, right angle between IDCs and RJ45 keystone jacks ID stripes for identifying port allocations IDC compatible with 110&Krone tool Mounts in standard 19” racks RoHS/UL certified .

Specification Panel: SECC, 1.2mm thickness with Black (RAL 9005) color painted. RJ45 Jack Housing: PBT+15%GF, UL 94V-0. RJ45 Jack shield: Bronze with Nickel plated. RJ45 Jack Contact Material & Finished: Material: Phosphor Bronze Finish: min 3 mm 50 micro-inches Gold plated over Nickel plated. IDC Housing: PC+ 5% Glass Fiber, UL 94V-2 IDC Terminal material & Finished: Phosphor Bronze with min 50 micro-inch Tin plated Krone tool only. Suitable for 22-26 AWG solid and stranded wire. Jack Bracket Set: ABS+ PC, UL 94V-0, Black (RAL 9005) color.

Performance: T568A & T568B wiring scheme Insertion force: 90 gm for 8 contacts. Retention strength: 7.7 kg between jack and plug. Operating temperature: -10›C to 60›C ( ISO/IEC 11801, ANSI/TIA/EIA 568B.2). Durability: Jack: 750 cycle’s plug-jack mating and unmating test, insertion cycles at 20 cycles / minute max. contact. resistance test per 100 cycles. The Cat5E transmission performance is in compliance. with the ANSI/TIA/EIA 568B.2 standard.
