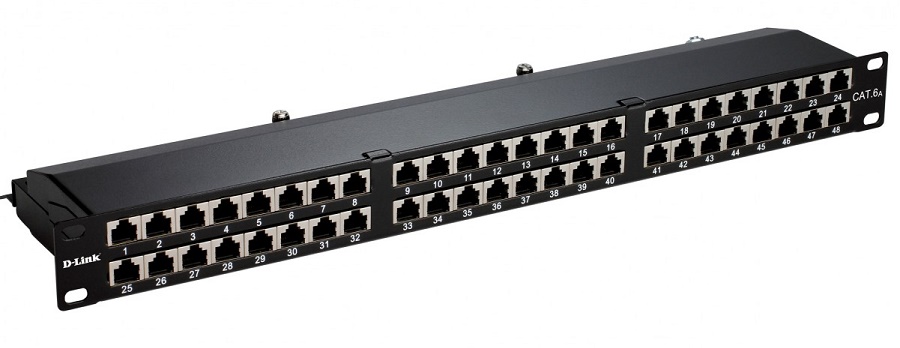

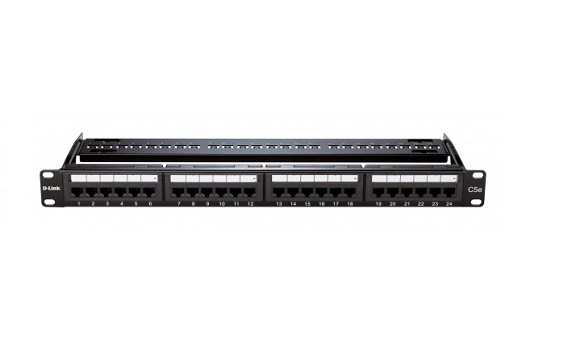

•Features: Six Port RJ45 modules applied ID stripes for identifying port allocations IDC: suitable for 22-26 AWG stranded and solid wire Compatible both with 110& Krone punch down tools Improved Cable Management with optional cable management bar Available in 1U and 2U.

•Specification: Identification: ID plate, PVC, Transparent color with paper. Panel: SPCC, 1.5mm thickness with Black (RAL 9005) color painted. RJ45 Jack: Housing: ABS, UL 94V-0 Contact Brackets: PC, UL 94V-2, Transparent color. RJ45 Jack Contact:

Material: Phosphor Bronze with Nickel Plated. Finish: 50 micro-inches Gold plated on plug contact area. IDC: Housing: PC+ Glass Fiber, UL 94V-2 Terminal: phosphor Bronze with Tin plated. Jack Bracket Set: ABS, UL 94V-0. Support Bar: SPCC, 1.5 mm thickness with Black (RAL 9005) color painted. PCB: FR4, UL 94V-0.
