Features: High density 24 port 1U patch panel Six Port RJ45 modules applied IDC: suitable for 22-26 AWG stranded and solid wire Compatible both with 110& Krone punch down tools Designed to easily route cables into vertical cable managers, reducing the need for horizontal, front cable management bars.

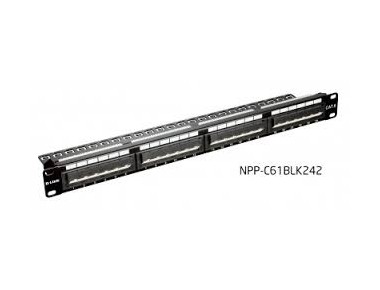

Specifications: Description 24 Port Cat6 UTP Angular Fully Loaded Punch Down Patch Panel - Keystone Type -1U- Black Color Category Cat6 Loaded/Unloaded/Fully Loaded Fully Loaded Port 24 port Unshielded/Shilded Unshielded.

Performance: T568A & T568B wiring scheme on PCB Insertion force: 20N max. (IEC 60603-7-4) Retention strength: 7.7 kg between jack and plug. Jack: 750 cycle’s min (ISO/IEC 11801, IEC 60603-7-4). IDC: suitable for 22-26 AWG stranded and solid wire, compatible with both 110& Krone punch down tools. The Cat6 transmission performance is in compliance with the ANSI/TIA/EIA 568C.2 -1 standard.
