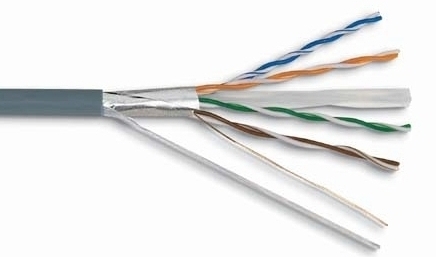

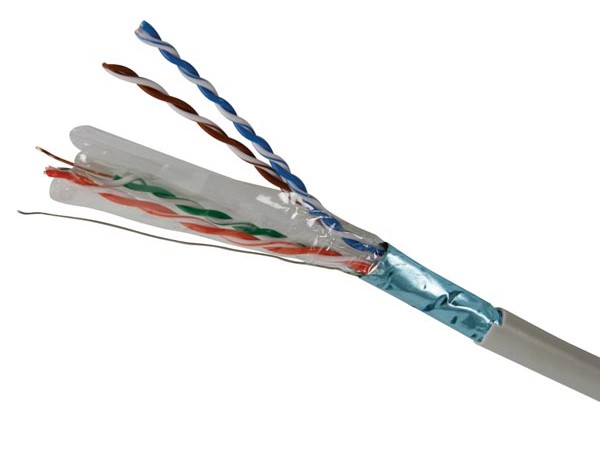

Specifications: Description: Cat6 STP 23AWG Solid, 305M/Roll, Grey. Type: STP. Category: Cat6. AWG: 23. Color: Grey. Length: 305m.

Cable Specifications: "Category 6 STP Solid cable Conductor: 23 AWG(0.583 ±0.007mm), Multi-cores (Solid) Conductor Metal: Bare Copper Insulation Material: HD-PE OD: 1.12 ±0.05mm Average Thickness: 0.26 mm Outside-Tape Metal: MYLAR Overlap Rate: 25% Drain Wire: 24 AWG(0.500 ±0.007mm) Jacket hardness: 45P (90A ± 2A, Shore) Material: PVC UL94V-0 OD: 7.40mm ±0.2 Average Thickness: 0.70 mm Color: COOL GRAY 10C Length type: 305M +2M Temperature -resistant: 75o C minimum Flame resistant: The purpose of the vertical flame test is to screen out flammable wires. That follow to VW-1 (UL); FT-1 (CSA), either. "

Technical Details: "Mutual Capacitance: 5.6nF/100m nominal Characteristic Impedance: 100Ω±15%,1-600MHz Nominal Velocity of Propagation: 69% Operating Temperature: -20℃-60℃(-4℉-140℉) Storage Temperature: -20℃-80℃(-4℉-176℉). "
