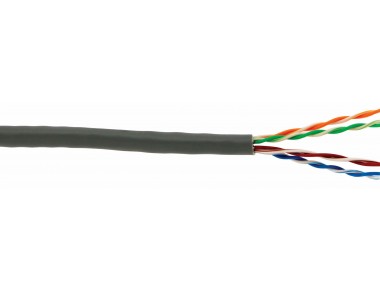

D-LINK Cat6 UTP 23AWG Solid Cable,305M

D-LINK NCB-C6UGRYR-305 Cat6 UTP 23AWG Solid Cable,305M


Specifications: Description: Cat6 UTP 23AWG Solid,305M/Roll, Grey. Type: UTP. Category: Cat6. AWG: 23. LSZH: NO. Color: Grey. Length: 305m.
Cable Specifications: "Category 6 UTP Solid cable Color: Cool Gray 10C Length type: 305M + 2M Heat-resistant: 75o C minimum (Temperature limited) Flame property: The purpose of the vertical flame test is to screen out flammable wires. That follow to VW-1 (UL); FT-1 (CSA), either. Conductor: 23 AWG(0.574 ±0.007mm), Multi-cores (Solid) Conductor Metal: Bare Copper Insulation Material: HD-PE OD: 1.00 ±0.05mm Average Thickness: 0.22 mm Jacket hardness: 45P (90A ± 2A, Shore) Material: PVC UL94V-0 OD: 6mm ±0.2 Average Thickness: 0.60 mm ".
Technical Details: "Mutual Capacitance: 5.6nF/100m nominal Characteristic Impedance: 100Ω±15%,1-600MHz Nominal Velocity of Propagation: 69% Operating Temperature: -20℃-60℃(-4℉-140℉) Storage Temperature: -20℃-80℃(-4℉-176℉) ".
